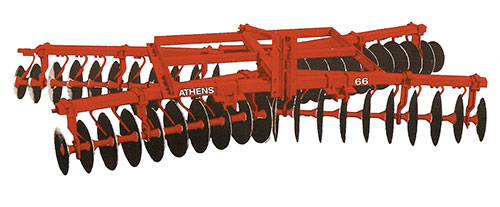

MODEL 66 |
STANDARD EQUIPMENT
- Disc Blades - 20" or 22" Diameter
- 1-1/8" Square Steel Axle
- Relube Ball Bearings
- Rigid Flangette Bearing Hangers
- Adjustable Angle of Cut - 16º to 21º
- Disc Gang Wrench
- Disc Spacing – 7-½", 9", or 9" Front / 7-½" Rear
EXTRA EQUIPMENT
- Heavy Duty Scraper Blades
- Cover Disc
- Balk Buster
|
|
|
|
|
FEATURES
Frame Design
The frame of the Athens 66 is constructed heavy and durable steel angle and tubing welded in a compact close-coupled design, which allows for straight pulling and excellent maneuverability in small fields.
Versatility
The Hitch is designed to adapt to a Category II Free Link or a Category II Quick Hitch.
Width of Cut
The Model 66 provides maximum width of cut without the tire compaction of a wheeled unit.
|
|
Choice Of Discs
20" or 22" Cutout or Smooth Discs are offered on the Model 66. The disc blades are made from the highest quality steel for strength and durability.
Angle Of Cut
Disc Gangs adjust individually from 16º to 21º of cut. |
|
|
SPECIFICATIONS |
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS |
APPROX
WEIGHT (lbs) |
|
10' 6 " |
30 or 32 |
8 |
2,039 |
70 |
10' 9 " |
28 |
8 |
2,006 |
70 |
12' 2 " |
32 |
12 |
2,180 |
75-85 |
12' 11 " |
36 or 40 |
12 |
2,257 |
80-90 |
13' 6 " |
36 |
12 |
2,298 |
90-100 |
14' 1 " |
40 or 44 |
12 |
2,387 |
90-100 |
15' 0 " |
40 |
16 |
2,444 |
90-110 |
15' 3 " |
44 or 48 |
16 |
2,522 |
90-110 |
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
|
|
