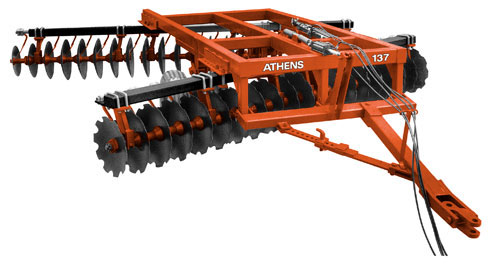

MODEL 137/187 |
STANDARD EQUIPMENT
- Disc - 24" Diameter (137) & 26" Diameter (187)
- 1-1/2" Square Steel Axle
- Relube QUADRASEAL Ball Bearings or Relube QUADRASEAL Tapered Roller Bearings
- Adjustable Angle of Cut - 13° - 25°
- Split Wheel Carriages
- Dual Wheels & 6 Lug Wheel Hubs & Rims
- Rigid Bearing Hangers w/ Wear Plates
- Heavy-Duty Scrapers
- Tapered Disc Gangs
- Extra Disc on Rear Gang
- Cover Disc with Scrapers
- Reversible Tongue Clevis
- Complete Hydraulics - Lifting & Leveling
- Gang Wrench and Tongue Jack
- Mechanical Transport
EXTRA EQUIPMENT
- Manual Leveling
- Spring Bearing Hangers w/ Wear Plates
|
|
|
|
|
FEATURES
The Model 137 is the ideal weight and size for general purpose usage. With a cutting width ranging from 12' 6" to 18' 6" and a weight of 137 lbs. per blade, this offset can cover a lot of ground quickly and penetrate even the toughest pasture land. The Model 187 is nearly 27% heavier than the 137. Standard 10 ½" Disc Spacing will handle more trash and give you the results needed in less time.
Choice of Discs
24" or 26" Cutout or Smooth Discs are offered on the Model 137/187. The disc blades are made from the highest quality steel for superior cutting and durability.
|
|
Bearings
QUADRASEAL Double-Row Tapered Roller Bearings on the 137/187 mean long life and less downtime.
Bearing Hangers
Both Rigid and Spring Bearing Hangers feature a Wear Plate which protects the front and the bottom-side of the Bearing Housing. The Rigid Bearing Hanger is for general purpose usage in normal field conditions. Spring Bearing Hangers with double-row tapered roller bearings provide maximum flexibility in rocky and uneven land.
Hydraulic Leveling
Leveling the 137/187 in the field or in transport is an effortless adjustment from the tractor seat. |
|
|
137 SPECIFICATIONS |
Disc Spacing - 9 ½" Discs - 24" Cutout or Smooth
|
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS |
APPROX
WEIGHT (lbs) |
|
12' 6 " |
33 |
8 |
5,367 |
120 |
14' 0 " |
37 |
9 |
5,734 |
140 |
15' 6 " |
41 |
12 |
6,373 |
150 |
17' 0 " |
45 |
12 |
6,734 |
170 |
18' 6 " |
49 |
12 |
7,076 |
180 |
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
187 SPECIFICATIONS |
Disc Spacing - 10 ½"
Discs - 26" Cutout or Smooth |
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS |
APPROX
WEIGHT (lbs) |
|
12' 1 " |
29 |
8 |
5,693 |
120 |
13' 9 " |
33 |
12 |
6,380 |
140 |
15' 5 " |
37 |
12 |
7,031 |
150 |
17' 1 " |
41 |
13 |
7,365 |
170 |
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
|
|
