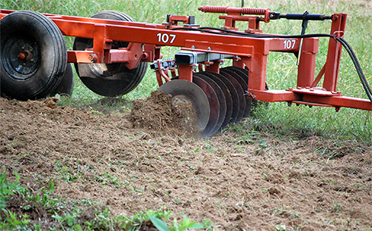

Athens Plow - Model 107 Pull-Type Offset Disc Harrow

MODEL 107

STANDARD EQUIPMENT

Disc - 22" or 24" Diameter
Disc Spacing - 9"
1 ¼" Square Steel Axle
Relube QUADRASEAL Ball Bearings
Adjustable Angle of Cut - 16° - 26°
Rigid Bearing Hangers w/ Wear Plates
Heavy-Duty Scrapers
Tapered Disc Gangs
Extra Disc on Rear Gang
Cover Disc with Scrapers
Reversible Tongue Clevis
Lifting Hydraulics
Gang Wrench and Tongue Jack
Mechanical Transport

FEATURES
Choice Of Discs
22" or 24" Cutout or Smooth Discs are offered on the Model 107. The disc blades are made from the highest quality steel for superior cutting and durability.

Bearings
Strong Relube QUADRASEAL Ball Bearings on the Model 107 mean long life and less downtime.

Angle of Cut
Disc Gangs adjust individually from 16° to 26°.

The Weight Per Blade on the Model 107 ranges from
107-137 pounds per blade making it the perfect choice
for 45-65 horsepower tractors.

SPECIFICATIONS
WIDTH OF CUT	NUMBER OF DISCS	NUMBER OF BEARINGS	APPROX WEIGHT (lbs)	*APPROX DBHP
6' 2 "	17	6	2,334	45-55
6' 10 "	19	6	2,476	50-60
7' 6 "	21	6	2,592	55-65
8' 2 "	23	8	2,708	60-65
*Approximate draw bar horsepower (DBHP) is only given as a guide. Extremely hard, soft, hilly, or boggy conditions will change these figures.
